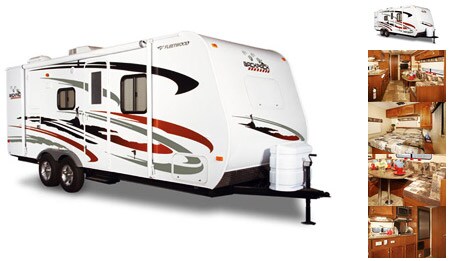

Fleetwood Backpack

• 6 Gallon Propane Water Heater
• Cable TV Hook–Up
• Hard Valance Window Treatment Throughout
• Hardwood Mortise & Tenon Cabinet Doors
• Hydro Flame(R) Direct Spark Ignition - Furnace w/Thermostat
• Mini-Blinds Throughout, Except Bunk Windows
• No Wax Vinyl Flooring
• Under Cabinet Mount AM/FM/CD Player w/Jack for MP3 Player – 4 Speakers
• Water Heater Bypass
• Wired for Air Conditioner, TV Antenna & Stereo

• 19" LCD TV w/DVD
• Glass Shower Enclosure (8' Wide Models)
• Overhead Combo Bunk (7' Wide Models)
• Sleeper Sofa (210FQ)

• 5" Thick Reversible Dinette Cushions
• Decorative Front Wall Mounted Lights
• Indoor/Outdoor Table (Select Models)
• Jackknife Sofa Bed (Select Models)
• Roof Vent

• ABS Tub/Shower Surround
• Full Function Bath Areas
• Thetford(R) Fresh Water Flush Toilet
• Upgrade Decorative Fabric Shower Curtain (8' Wide Models)
• Wall-Mount Mirrored Medicine Cabinet

• 3 Burner Cook Top (7' Wide Models)
• 3 Burner Cook Top w/16" Oven (8' Wide Models)
• Acrylic Sink w/Stainless Steel Finish
• Durable, Removable, Easy to Clean Storage Drawer Bins
• High Rise Chrome Faucet
• Microwave
• Propane/Electric Refrigerator
• Range Hood w/12V Light and Exhaust Fan

• 6–Panel Deluxe Refrigerator Insert Panel (8' Wide Models)
• Stainless Steel Appliances

• Bedroom Divider Privacy Curtains
• Bunk Beds (Select Models)
• Innerspring Mattress (Island Queen Beds Only)
• Pillow Shams (Select Models)
• Residential Size Wardrobe
• Roof Vent (7' Wide Models)
• Strut Assisted Lift-Up Bed Platform w/Below Bed Storage (Most Models)
• Upgrade Quilted Bedspread (Except Bunks)

• 10" Electric Brakes
• 120V GFI Circuit Protection (Galley/Bath/Patio)
• Carbon Monoxide Detector/Alarm
• Fire Extinguisher
• On Demand Water Pump
• Propane Detector/Alarm
• Smoke Detector/Alarm
• Wall Mounted Systems Monitor Panel

• 13,500 Btu Air Conditioner
• Atwood 6 gal. High Efficiency Gas/Electric Water Heater w/Maximum Recovery Rate of 17.8 gal. per hr.
• Day/Night Shades – Living Room (8' Wide Models)
• Living Room Throw Pillows (Sofa Bed Models)
• Night Shades – Bedroom (8' Wide Models)

• 6 cu. ft. Double Door Refrigerator (8' Wide Models)
• Large Bath Skylight
• LED Taillights
• Protective Chrome Diamond Plating
• Range Cover
• Sink Lid

• 19" LCD TV
• Crowned Steel Stamped Ceiling Truss
• Deluxe Full Extension Galley Drawer Guides
• Fully Enclosed Underbelly
• In-Ceiling Ducted A/C
• Joy-Ride Rubberized Suspension
• Large Lend-a-Hand Entry Assist Handle
• Painted Lower Body Skirting
• Porcelain Toilet w/Foot Pedal
• Raised Panel Upper Cabinet Doors
• Welded 4" Steel Tube Bumper
• Wood Drawer Boxes

• Aluminum Wheels (7' Wide Models)
• Automotive D-Seal at Windows
• Awning
• Black Framed Radius Tinted Safety Glass Windows
• Dual 20 lb. Propane Tanks
• E-Z Lube(R) Hubs
• Exterior Marine Grade Speakers (7' Wide Models)
• Exterior Shower (8' Wide Models)
• Hitch Light (8' Wide Models)
• Lightweight, Soft-Riding, Rugged, Automotive-Style Steel Leaf Spring Suspension
• Locking, Insulated Radiused Luggage Doors
• Molded Propane Cover
• Molded Rain Gutters w/Drip Spouts
• Patio Light
• Seamless, One-Piece Rubber Roof
• Sewer Hose Compartment w/Door
• Single Piece Polyethylene Rotocast Waste & Water Tanks
• Smooth Fiberglass Siding
• Spare Tire & Carrier
• Stabilizer Jacks (4)
• Sub-Floor Fresh Water Holding Tank (Larger Models)
• TV Antenna
• Welded Aluminum Laminated Sidewalls, Floors, Fronts & Rears
• Welded Durable Steel Chassis

• Aluminum Wheels (8' Wide Models)
• Double Entry Step (Select Models)
• Exterior Garage Storage Compartment (8' Wide Models)
• Marine Grade Speakers (8' Wide Models)
• Upgrade Radial Tires

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

* Not all options are available on all floor plans. See your Fleetwood dealer for details.

¹The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependant on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

** CSA standards may require substitution or deletion to achieve conformance.

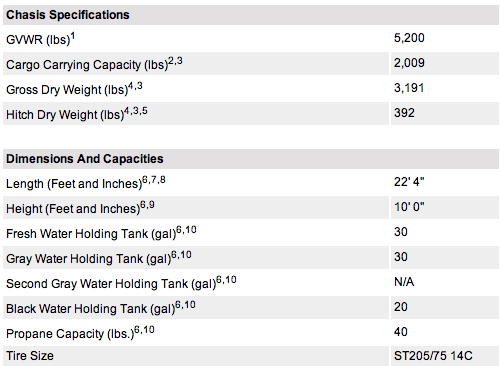

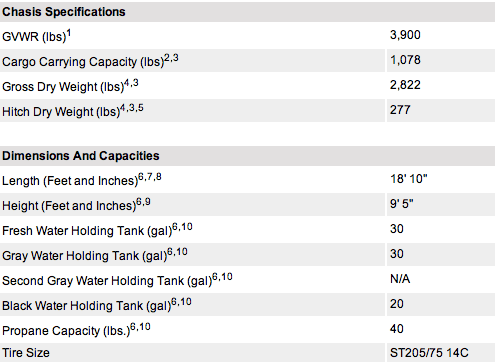

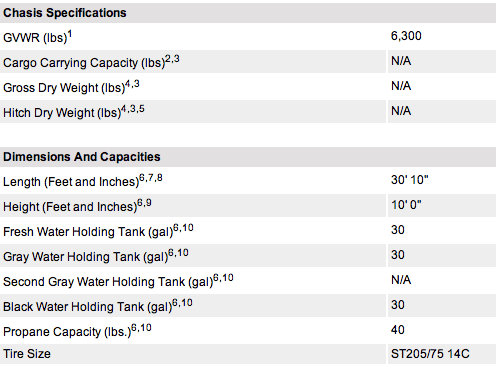

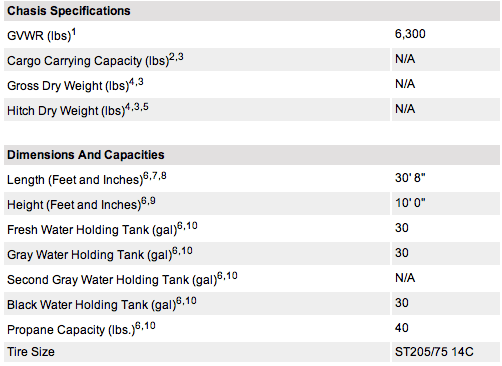

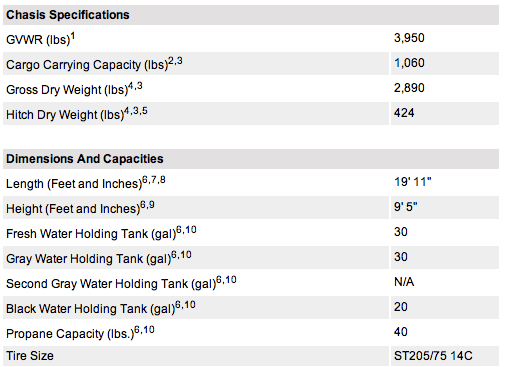

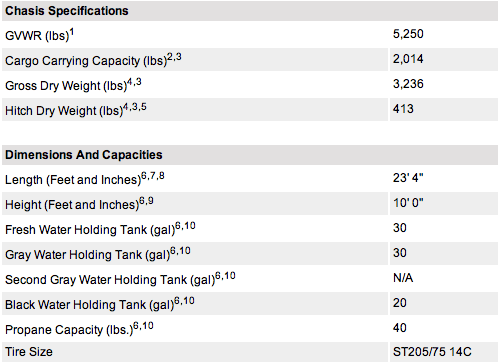

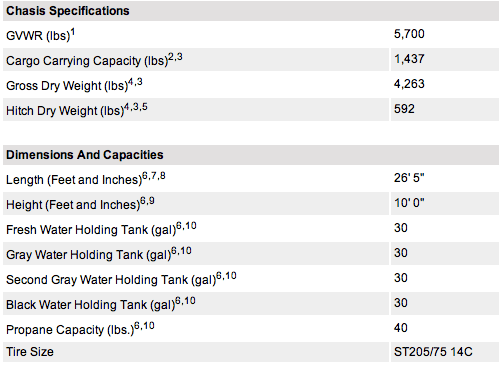

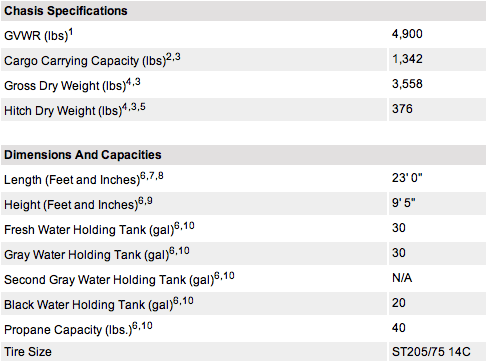

1. GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this trailer when fully loaded. It includes all weight at the trailer axle(s) and tongue or pin.
2. Cargo Carrying Capacity is determined by subtracting Gross Dry Weight from GVWR. Cargo includes all fluids, optional features, equipment, and personal cargo.
3. Approximate weight.
4. All dry weights are based on the standard model and do not include optional features or equipment.
5. Hitch weights are dependant upon how the trailer is equipped with options, on-board cargo, and tank fluid levels. Actual hitch weights may be higher or lower than shown. It is recommended that the tow vehicle and hitch for your trailer have sufficient capacity to accommodate the "Gross Vehicle Weight Rating" of the selected trailer.
6. Approximate capacity.
7. Add 10" if equipped with optional spare tire and carrier.
8. Length is measured from hitch or pin box to rear bumper (excludes accessories). Trailer length includes hitch; fifth wheel includes standard pin box.
9. Actual height may be lower, based on option offerings. Consult with your dealer to obtain actual height for the unit you are interested in.
10. Water weight equals 8.3 lbs per gallon. Propane weight equals 4.2 lbs per gallon.

*Sleeping capacity is a variable number and is affected by items such as size of occupant, options and floor plan.

Some models are not available in all areas of the country. Please see your local dealer for model availability.

RV OWNERCARE. See your nearest Fleetwood dealer for complete details.

N/A = Not Available.

Liquid Weight Reference
Water (gal/ltrs) = (8.3 lbs/3.8 kgs), Gas (gal/ltrs) = (6.1 lbs/2.8 kgs), Diesel (gal/ltrs) = (7.1 lbs/3.2 kgs), Propane (gal/ltrs) = (4.2 lbs/1.9 kgs)

Metric Conversion
Multiply pounds x 0.453 to obtain kilograms, Multiply gallons x 3.785 to obtain liters.
