Fleetwood Nitrous Hyperlite

• 13,500 Btu Air Conditioner
• 6-Gallon Propane/Direct Spark Ignition Water Heater with Bypass
• Cable TV Hookup
• Commercial Grade Vinyl Flooring
• Decor Coordinated Removable Carpet Kit
• Electric 12V Queen Size Loft Bunk w/Ladder & Privacy Curtain
• Flush Floor Cargo Tie-Downs
• Full Systems Monitor Panel
• Hydro Flame® Forced Air, Direct Spark Ignition Furnace with Thermostat
• Medicine Cabinet with Mirrored Door & Adjustable Shelves
• TV Cabinet/Shelf (Select Models)

• Dual Electric 12V Loft Bunk with Fold Over Sofa (Most Models)
• Flip–up Dinette
• LCD Flat Screen TV with DVD Player
• Ramp Screen Partition
• Rock the Box!™ Audio Entertainment System: 800W – 7 Speaker, Satellite & MP3 Compatible Stereo System with Dedicated Power Converter & External Weather Resistant Controls

• AM/FM/CD Stereo with 4 Ceiling Mounted Speakers
• Built–In TV Compartment/Shelf
• Facing Fold-Away Sofa Sleeper(s)

• ABS Tub and Shower Walls
• Lever Type Bath Door Handle
• Power Exhaust Roof Vent
• Skylight
• Towel Bars (2) and Ring

• 3–Burner Range with 16" Oven
• 6 cu. ft. Double Door Refrigerator
• 60/40 Sink
• Built–In Spice Shelf
• Microwave with Electronic Touch Pad
• Range Hood with 12V Light & Exhaust Fan

• Folding Privacy Door (Select Models)
• Mini Blinds
• Queen Size Bed with Under Bed Storage (Select Models)

• 120V GFI Circuit Protection (Galley/Bath/Patio)
• 120V Patio Receptacle
• Amber Patio Light
• Carbon Monoxide Detector/Alarm
• Deep Tinted Safety Glass Windows
• Fire Extinguisher
• Lockable Storage Compartments
• Propane Detector/Alarm
• Smoke Detector/Alarm

• 100 Gal. Fresh Water Tank
• 26" Entry Door with Safety Glass Window and Screen Door
• Base Camp Flood Lights (2)
• Chassis Mount Spare Tire
• Checkered Flag Patio Awning
• Custom Chrome Wheels with FUEL Logo Center Caps
• Designed In Beavertail Departure Angle (Cargo Floor)
• Diamond Plate Skirting
• Dual 5 Gallon (40 lb.) Propane Tanks
• E-Z Lube® Axles
• Exterior Shower
• Exterior Washer with Pressurized Nozzle
• EZ Lift 7' 2" Ramp Door with Anti Skid Surface, Integrated Locking Hardware and Rubber Bump Stops
• Fully Insulated Walls with R-7 Rated Floors, Ceilings & Ramp Door
• Heavy Duty Walk On Roof w/ Cargo Rack and Ladder
• Integrated Dual Battery Rack
• Laminated Aluminum Sidewall and Main Floor Construction
• Low Pressure Quick Disconnect Propane Bib
• Pet/Security Rings (2)
• Propane Tank Cover (Travel Trailer Models)
• Pumped up Exterior Graphics Package
• Quick Drain Knife Valve (Fresh Water Tank)
• Scissor Stabilizer Jacks (4)
• Seamless, One–Piece Rubber Roof
• Smooth Gel Coat Fiberglass Sidewalls
• TV Antenna

• 4.0 kW Generator (Onan®) with 20 Gal. Pump Station
• Aerodynamic ABS Front Cap with Integrated Propane Tank Cover
• All New Custom Aluminum Wheels
• Aluminum Interior/Exterior Work Bench (Select Models)
• Diamond Plate Flip Down Ramp Door Extension
• Exterior Weather Resistant Speakers
• Generator Ready with 20 Gal. Pump Station
• Heated Holding Tanks
• On Board 3–Gal. 125psi Air Compressor with 25 ft. Hose

• Cambered Chassis
• Structural Steel I–Beam Main Rails

• Carpeted Luggage Compartments
• Luggage Doors with Radius Corners
• Power Cord Storage
• Sewer Hose Storage

• 4 All New Killer Decors
• All New ABS Cap Option
• All New Custom Aluminum Wheel Option
• All New Furniture Design
• All New Graphic Colors
• Available Rock the Box!™ Sound System
• Cargo Capacity (3,500 + lbs.)
• Smooth Gel Coat Fiberglass Laminated Walls
• Standard Air Conditioner and Microwave
• Standard Awning

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

* Not all options are available on all floor plans. See your Fleetwood dealer for details.

¹The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependant on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

** CSA standards may require substitution or deletion to achieve conformance.

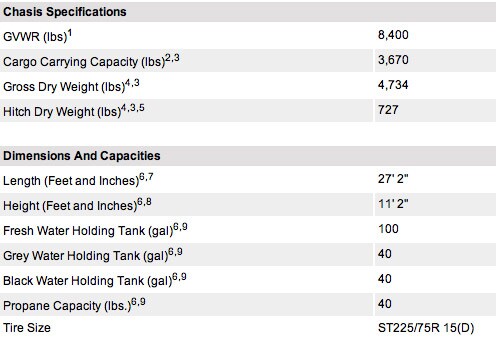

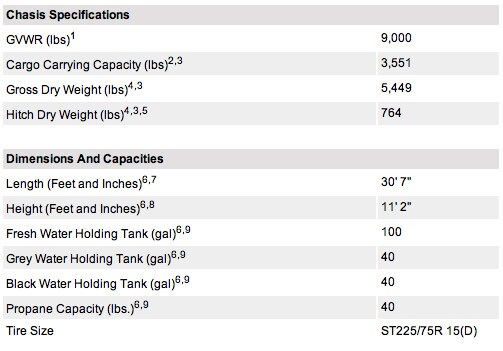

1. GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this trailer when fully loaded. It includes all weight at the trailer axle(s) and tongue or pin.
2. Cargo Carrying Capacity is determined by subtracting Gross Dry Weight from GVWR. Cargo includes all fluids, optional features, equipment, and personal cargo.
3. Approximate weight.
4. All dry weights are based on the standard model and do not include optional features or equipment.
5. Hitch weights are dependant upon how the trailer is equipped with options, on-board cargo, and tank fluid levels. Actual hitch weights may be higher or lower than shown. It is recommended that the tow vehicle and hitch for your trailer have sufficient capacity to accommodate the "Gross Vehicle Weight Rating" of the selected trailer.
6. Approximate capacity.
7. Add 10" if equipped with optional spare tire and carrier.
8. Length is measured from hitch or pin box to rear bumper (excludes accessories). Trailer length includes hitch; fifth wheel includes standard pin box.
9. Actual height may be lower, based on option offerings. Consult with your dealer to obtain actual height for the unit you are interested in.
10. Water weight equals 8.3 lbs per gallon. Propane weight equals 4.2 lbs per gallon.

*Sleeping capacity is a variable number and is affected by items such as size of occupant, options and floor plan.

Some models are not available in all areas of the country. Please see your local dealer for model availability.

RV OWNERCARE. See your nearest Fleetwood dealer for complete details.

N/A = Not Available.

Liquid Weight Reference
Water (gal/ltrs) = (8.3 lbs/3.8 kgs), Gas (gal/ltrs) = (6.1 lbs/2.8 kgs), Diesel (gal/ltrs) = (7.1 lbs/3.2 kgs), Propane (gal/ltrs) = (4.2 lbs/1.9 kgs)

Metric Conversion
Multiply pounds x 0.453 to obtain kilograms, Multiply gallons x 3.785 to obtain liters.
