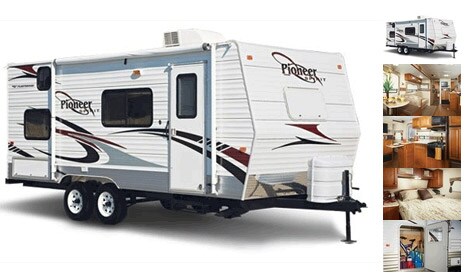

Fleetwood Pioneer Spirit |
Interior
|
Interior - Throughout
- 120 Volt Central Electrical Panel
- 120 Volt CFI Circuit Protection (Galley/Bath/Patio)
- 6 Gallon Propane/12 Volt DSI (Direct Spark Ignition) Water Heater
- Box Wrapped Valance Window Treatment
- Double-Light Fixtures (Most Areas)
- Dual 7 Gallon Propane Cylinders w/Regulator & Auto-Changeover
- Hydro Flame® Forced Air, Direct Spark Ignition Furnance w/Thermostat
- In-Ceiling Air Conditioner Ducting (Most Models)
- Interior Lights with Wall Switch
- Large TV Location (Most Models)
- Mini-blinds Throughout (Except Bunk Windows)
- Solid State Converter w/Built-In Battery Charger
- Stereo AM/FM CD Player
- Throw Pillows (2)
- Wall Mounted Systems Monitor Panel
- Water Heater Bypass
- Wired for Roof Air Conditioner
|
Options
- 13,500 Btu Air Conditioner
- Bedroom Carpet (Most Models)
- Double Bed w/Bunk Combo (Select Models)
- Front Windows w/Rock Guardt
- Pot and Pan Drawer
- Range Cover
- Sink Lids (2)
|
Bathroom
- 12 Volt Power Exhaust Roof Vent
- Medicine Cabinet w/Mirrored Door & Adjustable Shelves
- Skylight
- Thetford® Fresh Water Flush Toilet
- Towel Bar, Towel Ring, Toilet Paper Holder
- Wall-Switched Ceiling Light.
|
Galley
- 3 Burner Range with 16" Oven
- Double Bowl Sink
- Double Door Propane/Electric Refrigerator
- Double Handle High Rise Faucet
- Large Cabinet Doors
- Microwave w/Electronic Touch Pad
- Overhead Storage Cabinet Above Sink
- Raised Insert Overhead Cabinet Doors
- Range Hood w/12 Volt Light & Exhaust Fan
|
Bedroom
- Bedside Nightstand (Most Models)
- Decor Coordinated Bedspread
- Innerspring Mattress
- Lift-Up Bed Platform w/Below Bed Storage (Most Models)
- Wardrobes Accommodate Residential Size Clothes Hangers
|
Safety/Convenience
- 26" Wide Main Entry Door w/Window
- 4-Wheel Electric Brakes
- Break-Away Emergency Disconnect Brake
- Carbon Monoxide Detector/Alarm
- Fire Extinguisher
- Flush Mount Entry Door Latch w/Deadbolt Lock
- Patio Light w/Interior Switch
- Propane Detector/Alarm
- Retractable Entry Step w/Non-Skid Strip
- Smoke Detector/Alarm.
|
| |
| Exterior |
Exterior - Throughout
- 120 Volt Patio Receptacle
- Arctic White Glass Exterior Metal Finish
- Fiberglass Insulation
- Front Gravel Guard
- Full Color Decorative Exterior Graphics
- LPG Cover
- Patio Awning
- Radius Corner Safety Glass Windows
- Rear Bumper w/Sewer Hose Carrier
- Screen Door
- Seamless, One-Piece Rubber Roof
- Slide-Out End Wall Window
- Square Corner Luggage Doors
- Square Entry Door
- Structural I-Beam Cambered Chassis
- Sub-Floor Fresh Water Holding Tank (Most Models)
- Truss Roof Rafters
- TV Antenna
|
Options
- 7-Gallon Propane Cylinders w/Regulator & Auto-Changeover
- Easy Winterization Kit
- Exterior Shower
- Exterior Speakers
- Garage Storage (Most Models)
- Spare Tire and Carrier
- Stabilizer Jacks
|
Storage
- Large Pass Through Storage (Most Models)
- Locking, Insulated Luggage Doors
|
|
| |
| Trailers |

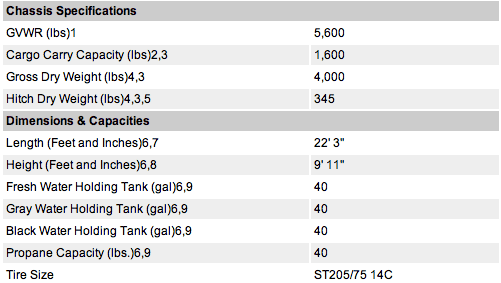

18CK
Click thumbnail to view larger floor plan
| Chassis Specifications |
| GVWR (lbs)1 |
5,600 |
| Cargo Carry Capacity (lbs)2,3 |
1,600 |
| Gross Dry Weight (lbs)4,3 |
4,000 |
| Hitch Dry Weight (lbs)4,3,5 |
345 |
| Dimensions & Capacities |
| Length (Feet and Inches)6,7 |
22' 3" |
| Height (Feet and Inches)6,8 |
9' 11" |
| Fresh Water Holding Tank (gal)6,9 |
40 |
| Gray Water Holding Tank (gal)6,9 |
40 |
| Black Water Holding Tank (gal)6,9 |
40 |
| Propane Capacity (lbs.)6,9 |
40 |
| Tire Size |
ST205/75 14C |
|
| |

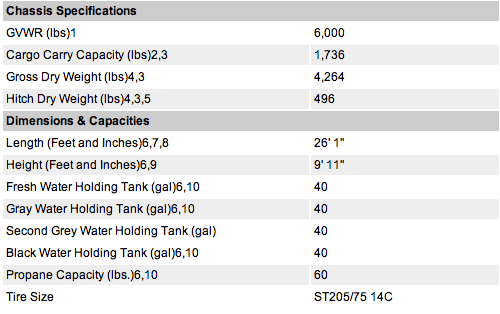

23RKS
Click thumbnail to view larger floor plan
| Chassis Specifications |
| GVWR (lbs)1 |
6,000 |
| Cargo Carry Capacity (lbs)2,3 |
1,736 |
| Gross Dry Weight (lbs)4,3 |
4,264 |
| Hitch Dry Weight (lbs)4,3,5 |
496 |
| Dimensions & Capacities |
| Length (Feet and Inches)6,7,8 |
26' 1" |
| Height (Feet and Inches)6,9 |
9' 11" |
| Fresh Water Holding Tank (gal)6,10 |
40 |
| Gray Water Holding Tank (gal)6,10 |
40 |
| Second Grey Water Holding Tank (gal) |
40 |
| Black Water Holding Tank (gal)6,10 |
40 |
| Propane Capacity (lbs.)6,10 |
60 |
| Tire Size |
ST205/75 14C |
|
| |

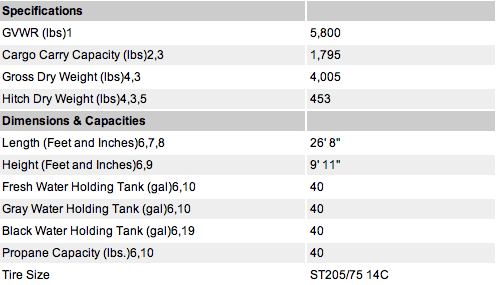

24BH
Click thumbnail to view larger floor plan
| Specifications |
|
| GVWR (lbs)1 |
5,800 |
| Cargo Carry Capacity (lbs)2,3 |
1,795 |
| Gross Dry Weight (lbs)4,3 |
4,005 |
| Hitch Dry Weight (lbs)4,3,5 |
453 |
| Dimensions & Capacities |
|
| Length (Feet and Inches)6,7,8 |
26' 8" |
| Height (Feet and Inches)6,9 |
9' 11" |
| Fresh Water Holding Tank (gal)6,10 |
40 |
| Gray Water Holding Tank (gal)6,10 |
40 |
| Black Water Holding Tank (gal)6,19 |
40 |
| Propane Capacity (lbs.)6,10 |
40 |
| Tire Size |
ST205/75 14C |
|
| |
28BH
Click thumbnail to view larger floor plan
| Specifications |
|
| GVWR (lbs)1 |
7,500 |
| Cargo Carry Capacity (lbs)2,3 |
2,909 |
| Gross Dry Weight (lbs)4,3 |
4,591 |
| Hitch Dry Weight (lbs)4,3,5 |
549 |
| Dimensions And Specifications |
|
| Length (Feet and Inches)6,7,8 |
29' 7" |
| Height (Feet and Inches)6,9 |
9' 11" |
| Fresh Water Holding Tank (gal)6,10 |
40 |
| Grey Water Holding Tank (gal)6,10 |
40 |
| Black Water Holding Tank (gal)6,10 |
40 |
| Propane Capacity (lbs.)6,10 |
40 |
| Tire Size |
ST205/75 14C |
|
| |
NOTE: Price shown is base MSRP in Canadian Dollars (of the least inexpensive chassis, where a chassis option is available) and does not include options, freight, or taxes. Please see your dealer for exact pricing, which could exceed MSRP. Prices and specifications are subject to change without notice.
1. (Gross Vehicle Weight Rating) is the maximum permissible weight of this trailer when fully loaded. It includes all weight at the trailer axle(s) and tongue or pin.
2. Estimated Weights
3. Cargo Carrying Capacity is determined by subtracting Gross Dry Weight from GVWR. Cargo Carrying Capacity includes all fluids, optional features, equipment, and personal cargo.
4. Approximate weight.
5. All dry weights are based on the standard model and do not include optional features or equipment.
6. Hitch weights are dependent upon how the trailer is equipped with options, on-board cargo and tank fluid levels. Actual hitch weights may be higher or lower than shown. It is recommended that the tow vehicle and hitch for your trailer have sufficient capacity to accommodate actual usage.
7. Approximate capacity.
8. Length taken from hitch or pin box to rear bumper (excludes accessories). Trailer length includes 3' 6" for hitch; fifth wheel includes standard pin box.
9. Actual height may be lower, based on option offerings. Consult with your dealer to obtain actual height for the unit you are interested in.
10. Water weight equals 8.3 lbs per gallon. Propane weight equals 4.2 lbs per gallon.
*Sleeping capacity is a variable number and is affected by items such as size of occupant, options and floor plan.
Some models are not available in all areas of the country. Please see your local dealer for model availability.
RV OWNERCARE. See your nearest Fleetwood dealer for a full explanation of benefits and restrictions of our 2007 warranty.
N/A = Not Available.
Liquid Weight Reference
Water (gal/ltrs) = (8.3 lbs/3.8 kgs), Gas (gal/ltrs) = (6.1 lbs/2.8 kgs), Diesel (gal/ltrs) = (7.1 lbs/3.2 kgs), Propane (gal/ltrs) = (4.2 lbs/1.9 kgs)
Metric Conversion
Multiply pounds x 0.453 to obtain kilograms, Multiply gallons x 3.785 to obtain liters
IMPORTANT-PLEASE READ: Product information, photography and illustrations included on this page were as accurate as possible at the time of publication. For further product information and changes, please contact your local Fleetwood dealer. Prices, materials, design and specifications are subject to change without notice. All weights, fuel, liquid capacities and dimensions are approximate. Fleetwood has designed its recreational vehicles to provide a variety of uses for its customers. Each vehicle features optimal seating, sleeping, storage and fluid capacities. The user is responsible for selecting the proper combination of loads (i.e. equipment, fluids, cargo, etc.) to ensure that the vehicle's capacities are not exceeded. |
;)
;)
;)
;)
