Fleetwood Pioneer

New RV Showroom > Fleetwood Pioneer

$What\'s My Trade-In Worth?$

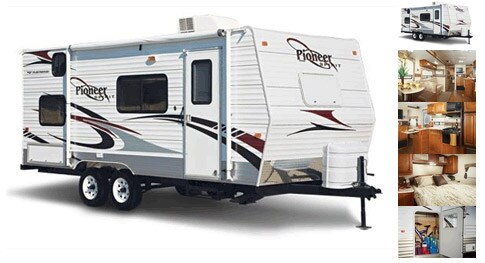

Fleetwood Pioneer

Interior

Interior - Throughout

120 Volt Central Electrical Panel
120 Volt CFI Circuit Protection (Galley/Bath/Patio)
6 Gallon Propane/12 Volt DSI (Direct Spark Ignition) Water Heater
Box Wrapped Valance Window Treatment
Ceiling Mount Decor Light over Dinette
Double-Light Fixtures (Most Areas)
Dual 7 Gallon Propane Cylinders w/Regulator & Auto-Changeover
Hydro Flame® Forced Air, Direct Spark Ignition Furnance w/Thermostat
In-Ceiling Air Conditioner Ducting (Most Models)
In-Floor Furnance Ducting
Interior Lights with Wall Switch
Large TV Location (Most Models)
Mini-blinds Throughout (Except Bunk Windows)
Solid State Converter w/Built-In Battery Charger
Stereo AM/FM CD Player
Throw Pillows (2)
Valance Lambrequins in Living Area
Wall Mount Decor Light on Large Slide-Outs
Wall Mounted Systems Monitor Panel
Water Heater Bypass
Wired for Roof Air Conditioner

Options

13,500 Btu Air Conditioner
15,000 Btu Air Conditioner
6-Gallon Propane/12V/110V DSI (Direct Spark Ignition) Water Heater
Bedroom Carpet (Most Models)
Double Bed w/Bunk Combo (Select Models)
Front Windows w/Rock Guard
Glass Shower Enclosure
LCD TV w/DVD
Porcelain Toilet
Pot and Pan Drawer
Range Cover
Sink Lids (2)
Slide Room Enhancement Package
Stereo AM/FM/CD/DVD/MP3 Player
Upgrade Mattress

Bathroom

12 Volt Power Exhaust Roof Vent
ABS Bath Tub Wall Surround
Medicine Cabinet w/Mirrored Door & Adjustable Shelves
Skylight
Thetford® Fresh Water Flush Toilet
Towel Bar, Towel Ring, Toilet Paper Holder
Wall-Switched Ceiling Light.

Galley

3 Burner Range with 16" Oven
Deluxe 3 Panel Wood Grain Refrigerator Insert
Double Bowl Sink
Double Door Propane/Electric Refrigerator
Double Handle High Rise Faucet
Flip-Up Counter Extension
Large Cabinet Doors
Microwave w/Electronic Touch Pad
Overhead Storage Cabinet Above Sink
Raised Insert Overhead Cabinet Doors
Range Hood w/12 Volt Light & Exhaust Fan

Bedroom

Bedside Nightstand (Most Models)
Decor Coordinated Bedspread
Innerspring Mattress
Lift-Up Bed Platform w/Below Bed Storage (Most Models)
Wardrobes Accommodate Residential Size Clothes Hangers

Safety/Convenience

26" Wide Main Entry Door w/Window
4-Wheel Electric Brakes
Break-Away Emergency Disconnect Brake
Carbon Monoxide Detector/Alarm
Fire Extinguisher
Flush Mount Entry Door Latch w/Deadbolt Lock
Patio Light w/Interior Switch
Propane Detector/Alarm
Retractable Entry Step w/Non-Skid Strip
Smoke Detector/Alarm.

Exterior

Exterior - Throughout

120 Volt Patio Receptacle
ABS Molded Entry Step Trim
Arctic White Glass Exterior Metal Finish
Fiberglass Insulation
Front Gravel Guard
Full Color Decorative Exterior Graphics
LPG Cover
Molded Wheel Well Skirts
Patio Awning
Radius Aluminum Sidewall Skirting
Radius Corner Entry Door
Radius Corner Luggage Doors
Radius Corner Safety Glass Windows
Rear Bumper w/Sewer Hose Carrier
Screen Door
Seamless, One-Piece Rubber Roof
Slide-Out End Wall Window
Stabilizer Jacks/2 Pair
Structural I-Beam Cambered Chassis
Sub-Floor Fresh Water Holding Tank (Most Models)
Truss Roof Rafters
TV Antenna

Options

Easy Winterization Kit
Electric Awning
Enclosed Chassis
Exterior Shower
Exterior Speakers
Garage Storage (Most Models)
Ladder
Spare Tire and Carrier

Storage

Large Pass Through Storage (Most Models)
Locking, Insulated Luggage Doors

Trailers

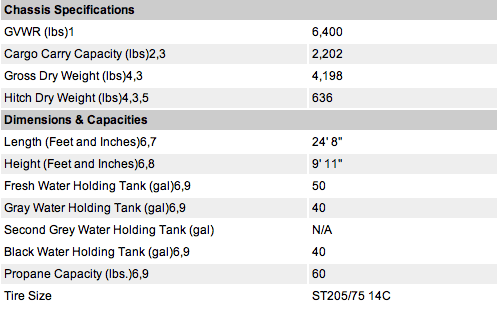

21CKS

Click thumbnail to view larger floor plan

Chassis Specifications
GVWR (lbs)1	6,400
Cargo Carry Capacity (lbs)2,3	2,202
Gross Dry Weight (lbs)4,3	4,198
Hitch Dry Weight (lbs)4,3,5	636
Dimensions & Capacities
Length (Feet and Inches)6,7	24' 8"
Height (Feet and Inches)6,8	9' 11"
Fresh Water Holding Tank (gal)6,9	50
Gray Water Holding Tank (gal)6,9	40
Second Grey Water Holding Tank (gal)	N/A
Black Water Holding Tank (gal)6,9	40
Propane Capacity (lbs.)6,9	60
Tire Size	ST205/75 14C

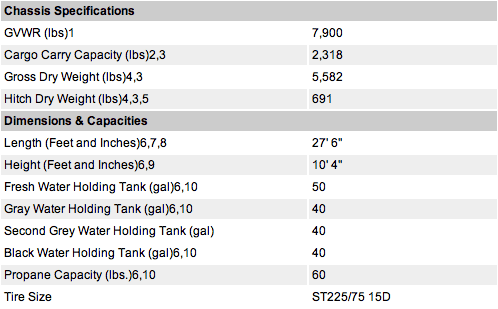

23RKS

Click thumbnail to view larger floor plan

Chassis Specifications
GVWR (lbs)1	7,900
Cargo Carry Capacity (lbs)2,3	2,318
Gross Dry Weight (lbs)4,3	5,582
Hitch Dry Weight (lbs)4,3,5	691
Dimensions & Capacities
Length (Feet and Inches)6,7,8	27' 6"
Height (Feet and Inches)6,9	10' 4"
Fresh Water Holding Tank (gal)6,10	50
Gray Water Holding Tank (gal)6,10	40
Second Grey Water Holding Tank (gal)	40
Black Water Holding Tank (gal)6,10	40
Propane Capacity (lbs.)6,10	60
Tire Size	ST225/75 15D

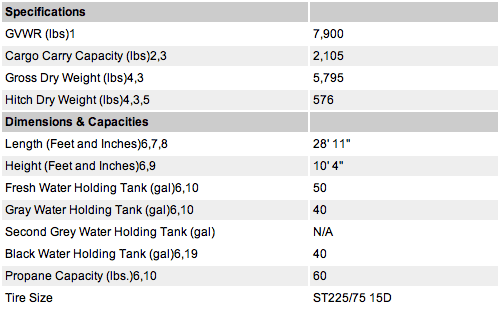

25RLS

Click thumbnail to view larger floor plan

Specifications
GVWR (lbs)1	7,900
Cargo Carry Capacity (lbs)2,3	2,105
Gross Dry Weight (lbs)4,3	5,795
Hitch Dry Weight (lbs)4,3,5	576
Dimensions & Capacities
Length (Feet and Inches)6,7,8	28' 11"
Height (Feet and Inches)6,9	10' 4"
Fresh Water Holding Tank (gal)6,10	50
Gray Water Holding Tank (gal)6,10	40
Second Grey Water Holding Tank (gal)	N/A
Black Water Holding Tank (gal)6,19	40
Propane Capacity (lbs.)6,10	60
Tire Size	ST225/75 15D

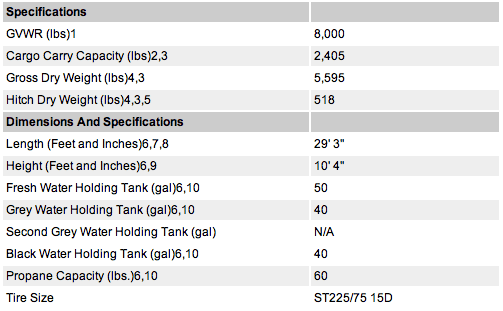

26BKS

Click thumbnail to view larger floor plan

Specifications
GVWR (lbs)1	8,000
Cargo Carry Capacity (lbs)2,3	2,405
Gross Dry Weight (lbs)4,3	5,595
Hitch Dry Weight (lbs)4,3,5	518
Dimensions And Specifications
Length (Feet and Inches)6,7,8	29' 3"
Height (Feet and Inches)6,9	10' 4"
Fresh Water Holding Tank (gal)6,10	50
Grey Water Holding Tank (gal)6,10	40
Second Grey Water Holding Tank (gal)	N/A
Black Water Holding Tank (gal)6,10	40
Propane Capacity (lbs.)6,10	60
Tire Size	ST225/75 15D

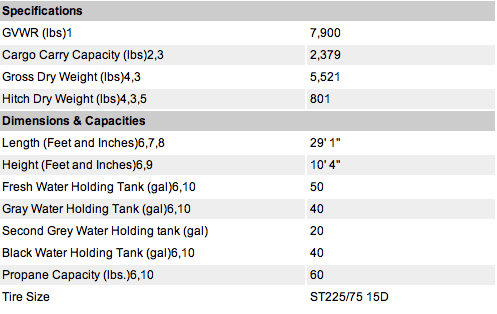

26RLS

Click thumbnail to view larger floor plan

Specifications
GVWR (lbs)1	7,900
Cargo Carry Capacity (lbs)2,3	2,379
Gross Dry Weight (lbs)4,3	5,521
Hitch Dry Weight (lbs)4,3,5	801
Dimensions & Capacities
Length (Feet and Inches)6,7,8	29' 1"
Height (Feet and Inches)6,9	10' 4"
Fresh Water Holding Tank (gal)6,10	50
Gray Water Holding Tank (gal)6,10	40
Second Grey Water Holding tank (gal)	20
Black Water Holding Tank (gal)6,10	40
Propane Capacity (lbs.)6,10	60
Tire Size	ST225/75 15D

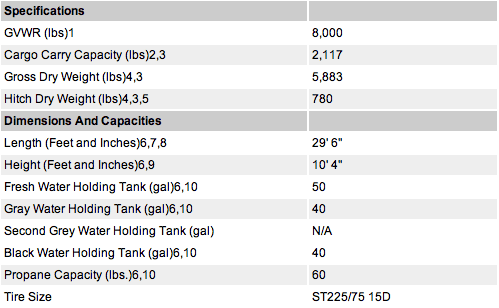

27RBS

Click thumbnail to view larger floor plan

Specifications
GVWR (lbs)1	8,000
Cargo Carry Capacity (lbs)2,3	2,117
Gross Dry Weight (lbs)4,3	5,883
Hitch Dry Weight (lbs)4,3,5	780
Dimensions And Capacities
Length (Feet and Inches)6,7,8	29' 6"
Height (Feet and Inches)6,9	10' 4"
Fresh Water Holding Tank (gal)6,10	50
Gray Water Holding Tank (gal)6,10	40
Second Grey Water Holding Tank (gal)	N/A
Black Water Holding Tank (gal)6,10	40
Propane Capacity (lbs.)6,10	60
Tire Size	ST225/75 15D

NOTE: Price shown is base MSRP in Canadian Dollars (of the least inexpensive chassis, where a chassis option is available) and does not include options, freight, or taxes. Please see your dealer for exact pricing, which could exceed MSRP. Prices and specifications are subject to change without notice.

1. (Gross Vehicle Weight Rating) is the maximum permissible weight of this trailer when fully loaded. It includes all weight at the trailer axle(s) and tongue or pin.
2. Estimated Weights
3. Cargo Carrying Capacity is determined by subtracting Gross Dry Weight from GVWR. Cargo Carrying Capacity includes all fluids, optional features, equipment, and personal cargo.
4. Approximate weight.
5. All dry weights are based on the standard model and do not include optional features or equipment.
6. Hitch weights are dependent upon how the trailer is equipped with options, on-board cargo and tank fluid levels. Actual hitch weights may be higher or lower than shown. It is recommended that the tow vehicle and hitch for your trailer have sufficient capacity to accommodate actual usage.
7. Approximate capacity.
8. Length taken from hitch or pin box to rear bumper (excludes accessories). Trailer length includes 3' 6" for hitch; fifth wheel includes standard pin box.
9. Actual height may be lower, based on option offerings. Consult with your dealer to obtain actual height for the unit you are interested in.
10. Water weight equals 8.3 lbs per gallon. Propane weight equals 4.2 lbs per gallon.

*Sleeping capacity is a variable number and is affected by items such as size of occupant, options and floor plan.

Some models are not available in all areas of the country. Please see your local dealer for model availability.

RV OWNERCARE. See your nearest Fleetwood dealer for a full explanation of benefits and restrictions of our 2007 warranty.

N/A = Not Available.

Liquid Weight Reference
Water (gal/ltrs) = (8.3 lbs/3.8 kgs), Gas (gal/ltrs) = (6.1 lbs/2.8 kgs), Diesel (gal/ltrs) = (7.1 lbs/3.2 kgs), Propane (gal/ltrs) = (4.2 lbs/1.9 kgs)

Metric Conversion
Multiply pounds x 0.453 to obtain kilograms, Multiply gallons x 3.785 to obtain liters

IMPORTANT-PLEASE READ: Product information, photography and illustrations included on this page were as accurate as possible at the time of publication. For further product information and changes, please contact your local Fleetwood dealer. Prices, materials, design and specifications are subject to change without notice. All weights, fuel, liquid capacities and dimensions are approximate. Fleetwood has designed its recreational vehicles to provide a variety of uses for its customers. Each vehicle features optimal seating, sleeping, storage and fluid capacities. The user is responsible for selecting the proper combination of loads (i.e. equipment, fluids, cargo, etc.) to ensure that the vehicle's capacities are not exceeded.
