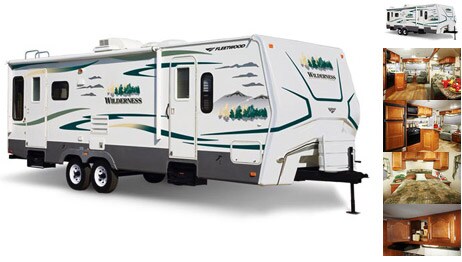

Fleetwood Wilderness

• 6-Gallon Propane DSI (Direct Spark Ignition) Water Heater
• AM/FM Stereo/CD Player w/2 Ceiling Mount Speakers
• Cable TV Hook-Up
• Coat Closet at Entry Door (Select Models)
• Cup Holders in Living and Bedroom Areas (Most Models)
• Free Standing Chairs (260RLS)
• Hydro Flame® Forced Air, Direct Spark Ignition Furnace w/Thermostat
• Mortise & Tenon Cathedral Arched Flat Panel Cabinet Doors
• Oversized Light Switches
• Satellite Ready
• Slide-Out End Wall Windows
• Solid State Converter w/Built-In Battery Charger
• Upgrade Plank Style Vinyl Flooring
• Wall Mount 12V Decor Light (Slide-Out Models)
• Water Heater Bypass

• 15,000 Btu Air Conditioner
• 19" LCD TV (240RKS and 260RLS)
• 26" LCD TV (Most Models)
• AM/FM Stereo/CD with DVD & MP3 Player, 6 Surround Sound Ceiling Mount Speakers & Sub Woofer
• Comfort Air™ Power Vent
• Free Standing Chair (280BHS, 330FKDS)
• Free Standing Dinette
• Large 8 cu. ft. Double Door Refrigerator
• Living Room Carpet (Most Models)
• Living Room Throw Pillows
• Raised Panel Refrigerator Insert (3 Panel)
• Sleeper Sofa

• 12V Power Exhaust Roof Vent
• ABS Tub/Shower Enclosure
• Medicine Cabinet w/Mirrored Door
• Porcelain Toilet
• Raised 6 Panel Bath Door
• Wall-Switched Ceiling Light

• Glass Shower Door Enclosure

• 12V Dinette Decor Light (Slide-Out Models)
• 3 Galley Drawers (Most Models)
• 3-Burner Range w/22" Oven
• 60/40 Sink
• Deluxe Full Extension Roller Bearing Drawer Guides
• Double Door Propane/Electric Refrigerator
• Flip-Up Galley Extension (Most Models)
• Metal Hi-Rise Faucet
• Microwave w/Electronic Touch Pad
• Pantry
• Pots & Pans Drawer
• Range Cover
• Range Hood w/12V Light & Exhaust Fan
• Residential Height Countertops

• 150 lb. Weight Rating for Combo Bunks
• 350 lb. Fixed Bunk Weight Rating
• Bedroom Carpet (Fifth Wheels)
• Built-In Bedroom TV Viewing Area
• Innerspring Mattress
• Lift-Up Bed Platform Storage (Most Models)
• Residential Size Wardrobe

• Bedroom Carpet (Travel Trailer Models)
• Upgraded Mattress

• 120V GFI Circuit Protection (Galley/Bath/Patio)
• 4-Wheel Electric Brakes
• Break-Away Emergency Disconnect Brake
• Carbon Monoxide Detector/Alarm
• Centralized Control Center
• Entry Assist Handle
• Fire Extinguisher
• Propane Detector/Alarm
• Smoke Detector/Alarm
• Wall Mounted Systems Monitor Panel
• Water System Winterization Port

• 13,500 Btu Air Conditioner
• Atwood 6 Gal. High Efficiency Gas/Electric Water Heater w/Maximum Recovery Rate of 17.8 Gal. Per Hr.
• Day/Night Shades - Living Room
• Night Shades - Bedroom

• Deluxe Raised Panel Overhead Cabinet Door
• Exterior Shower
• Front Gravel Cover
• Large Bath Skylight
• Large Lend-a-Hand Entry Assist Handle
• Sink Lids
• Slide-Over LPG Tank Cover

• 120V Patio Receptacle
• 30" Radius Entry Door (except 270DBHS)
• ABS Front Cap (Fifth wheels)
• Dual 30 lb. Propane Cylinders w/Regulator & Auto-Changeover
• Extended Pin Box & Power Landing Gear (Fifth Wheels)
• Fiberglass (Gel Coat) Sidewalls
• Front & Rear Colored Skirt End Caps
• Heated & Enclosed Water Tank
• Hitch Light
• Laminated Sidewalls
• Molded Wheel Well Skirts (Color Coordinated to Match Radius Skirt)
• Patio Awning
• Quick Drain Holding Tank (Fresh Water)
• Radius Truss Roof Rafters
• Satellite Jacks
• Split Tank Propane System (Fifth Wheels)
• Stabilizer Jacks
• Tinted Safety Glass Windows
• TV Antenna
• Welded Dual Battery Rack (Travel Trailers Only)

• ABS Front Cap (Travel Trailers)
• Aluminum Wheels
• Dual Pane Windows
• Electric Awning
• Exterior Speakers
• Extreme Edition Package (Double Thickness Insulation in Floor & Ceiling w/Astro-Foil™ in Slide Floor & Around Holding Tanks)
• Heated & Enclosed Holding & Water Tanks
• Roof Ladder
• Slide-Out Topper
• Spare Tire w/Cover
• Upgrade Radial Tires

• Cambered Chassis
• Fiberglass Exterior
• I-Beam Main Rails
• One-Piece Seamless Rubber Roof

• Finished Luggage Door Openings
• Locking, Lined Luggage Compartments
• Radius Luggage Doors

• Exterior Garage Storage (Select Models)
• Maxi-Store Luggage Doors

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

Click thumbnail to view larger floor plan

* Not all options are available on all floor plans. See your Fleetwood dealer for details.

¹The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependant on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

** CSA standards may require substitution or deletion to achieve conformance.

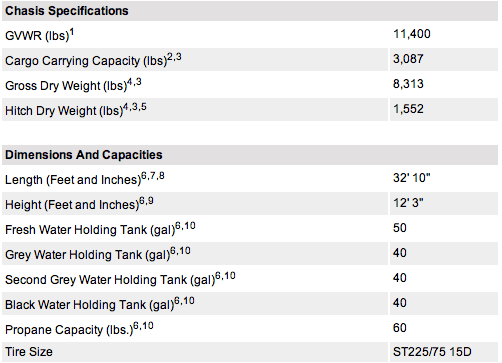

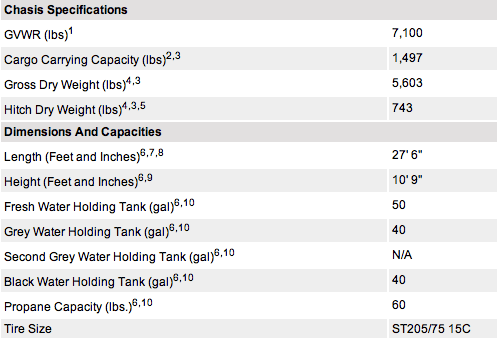

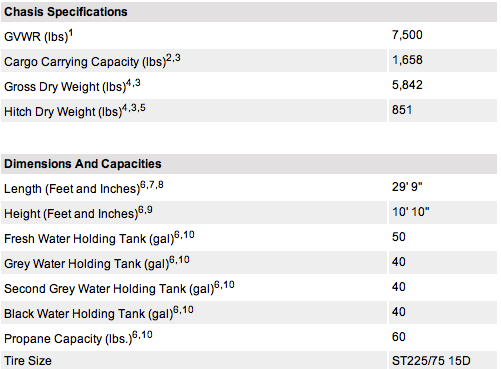

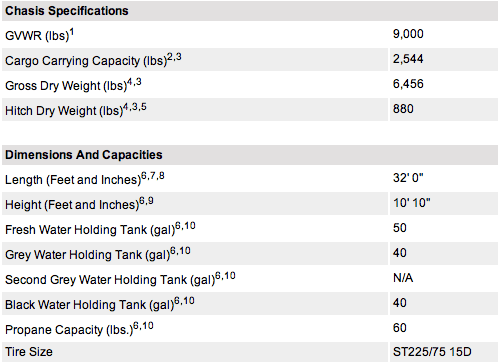

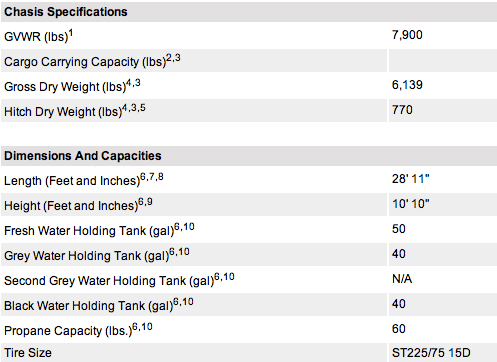

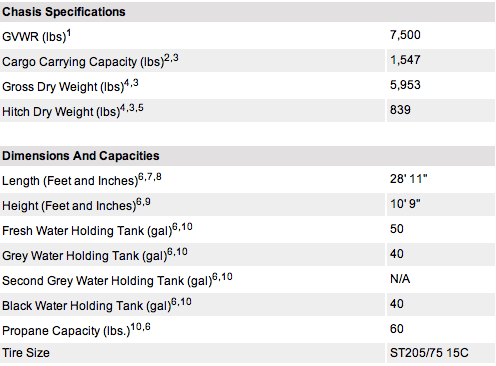

1. GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this trailer when fully loaded. It includes all weight at the trailer axle(s) and tongue or pin.
2. Cargo Carrying Capacity is determined by subtracting Gross Dry Weight from GVWR. Cargo includes all fluids, optional features, equipment, and personal cargo.
3. Approximate weight.
4. All dry weights are based on the standard model and do not include optional features or equipment.
5. Hitch weights are dependant upon how the trailer is equipped with options, on-board cargo, and tank fluid levels. Actual hitch weights may be higher or lower than shown. It is recommended that the tow vehicle and hitch for your trailer have sufficient capacity to accommodate the "Gross Vehicle Weight Rating" of the selected trailer.
6. Approximate capacity.
7. Add 10" if equipped with optional spare tire and carrier.
8. Length is measured from hitch or pin box to rear bumper (excludes accessories). Trailer length includes hitch; fifth wheel includes standard pin box.
9. Actual height may be lower, based on option offerings. Consult with your dealer to obtain actual height for the unit you are interested in.
10. Water weight equals 8.3 lbs per gallon. Propane weight equals 4.2 lbs per gallon.

*Sleeping capacity is a variable number and is affected by items such as size of occupant, options and floor plan.

Some models are not available in all areas of the country. Please see your local dealer for model availability.

RV OWNERCARE. See your nearest Fleetwood dealer for complete details.

N/A = Not Available.

Liquid Weight Reference
Water (gal/ltrs) = (8.3 lbs/3.8 kgs), Gas (gal/ltrs) = (6.1 lbs/2.8 kgs), Diesel (gal/ltrs) = (7.1 lbs/3.2 kgs), Propane (gal/ltrs) = (4.2 lbs/1.9 kgs)

Metric Conversion
Multiply pounds x 0.453 to obtain kilograms, Multiply gallons x 3.785 to obtain liters.

IMPORTANT–PLEASE READ: Product information, photography and illustrations included on this page were as accurate as possible at the time of publication. For further product information and changes, please contact your local Fleetwood dealer. Prices, materials, design and specifications are subject to change without notice. All weights, fuel, liquid capacities and dimensions are approximate. Fleetwood has designed its recreational vehicles to provide a variety of uses for its customers. Each vehicle features optimal seating, sleeping, storage and fluid capacities. The user is responsible for selecting the proper combination of loads (i.e. equipment, fluids, cargo, etc.) to ensure that the vehicle's capacities are not exceeded.
